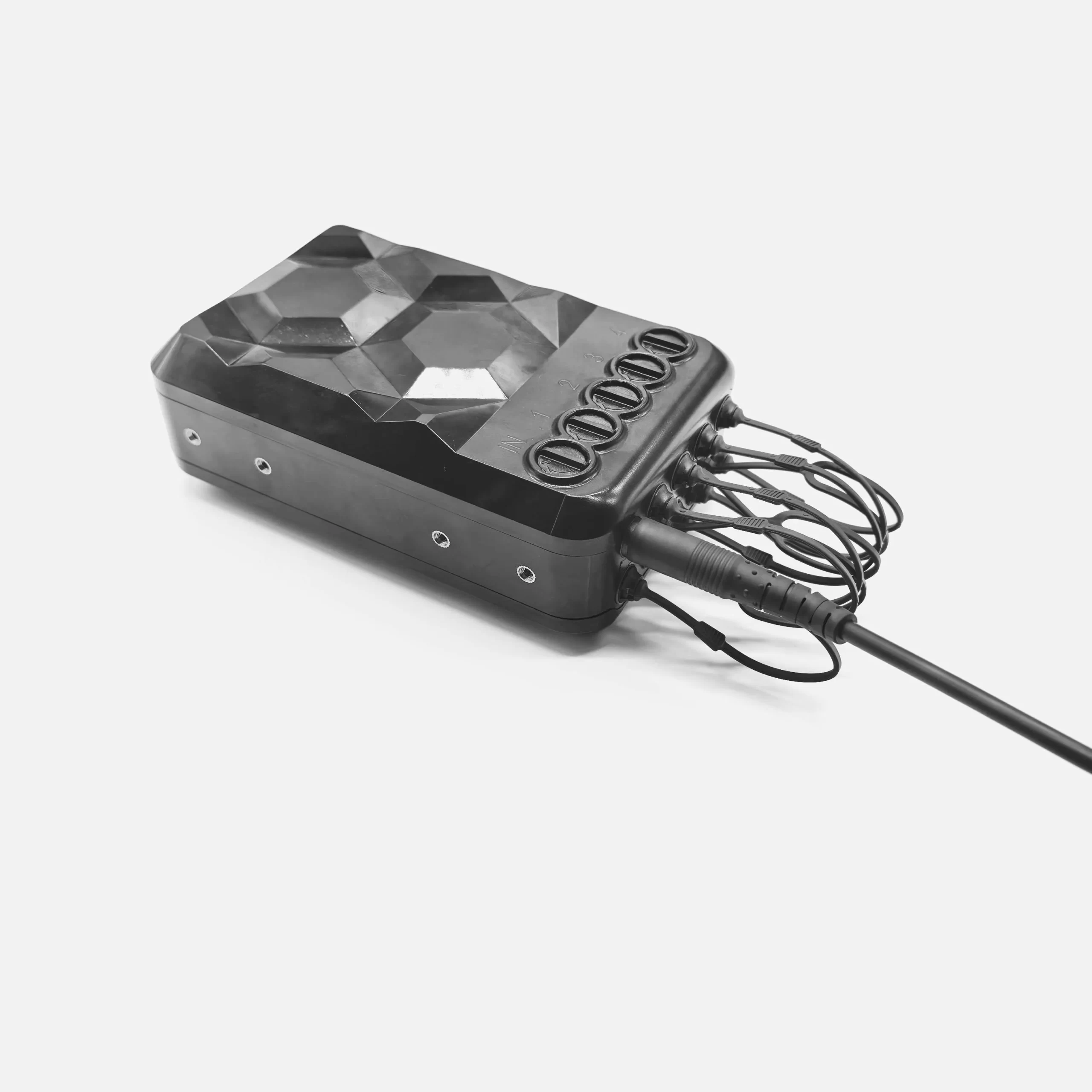

OUTDOOR PUSHLINK TERMINAL
Product information
Description
The PushLink Terminal is a cost- effective, high-performance fiber distribution solution designed for outdoor deployment. Engineered to simplify installation and maximize compatibility, it supports versatile mounting options and excels in harsh environments. Its seamless integration with Corning Pushlok™ connectors ensures rapid, tool-free fiber termination, reducing labor costs and deployment time.
Additional details

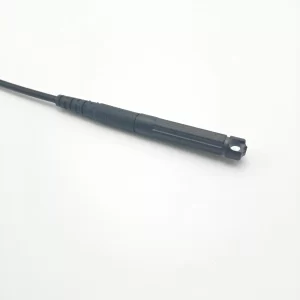

- High compatibility:Corning Pushlok™ connector compatible.

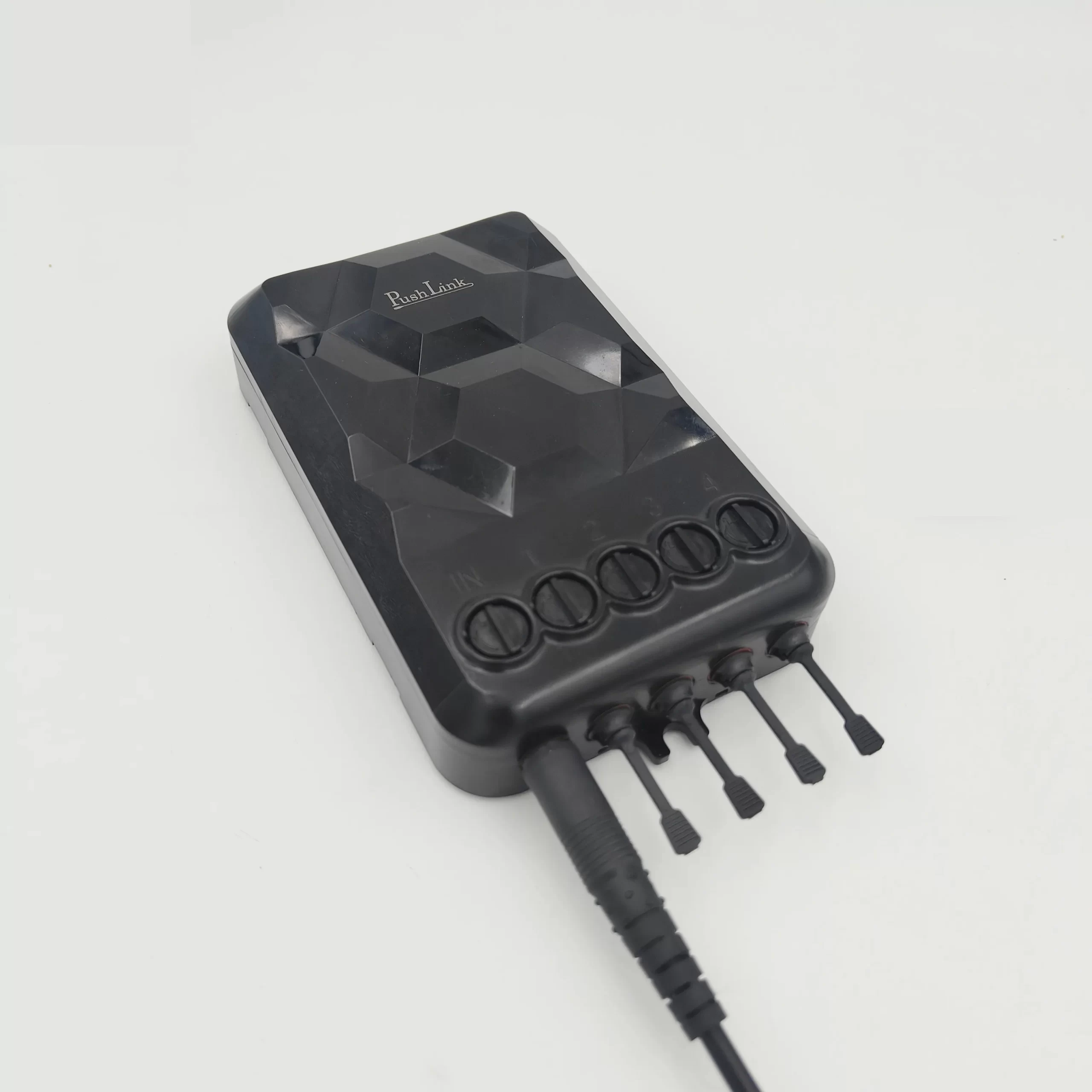

- 4 ports for single or multifiber harsh Pushlink connectors.
- Available with PLC or splice sleeve for fiber divide.
- IP68 waterproof rating and UV resistance.
- Wall-mounting, aerial installation or holding pole installation.
- Decreased angle surface and height make sure no connector interfering when operating.
- Meet IEC 61300 standard.
- Cost effective: save 50% space and cost compare Mini Hub enclosure.
- Broad temperature range (-40 to+70°C) is ideal for indoor or outdoor applications
Standards
Comply to IEC 61300
Insertion Loss(OUTPUT CONN, NO PLC)
Max.0.4dB, Mean 0.15dB(8° angled)
Return Loss(OUTPUT CONN, NO PLC)
Min 60dB(8° angled)
Operation Temperature
-30 to 60°C
Storage Temperature
-40 to 70°C
Cable Dimension
5mm round, or 3*5mm flat cable
Input Cable Max. Pulling Force(Max.)
100lb
UV Resistance
Comply to ASTM D638, GR-3120-Core
Water Resistance
IP68
